ADS1115 ADC Analog To Digital Converter 16Bit I2C 4Channel Module
$62.46
$114.93

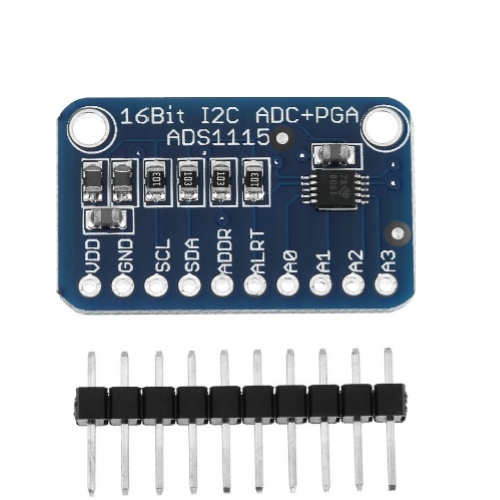

The ADS1115 ADC Analog To Digital Converter 16Bit I2C 4Channel Module For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. The chip’s fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller’s I2C port and run the example code to start reading data. Package Includes : 1 x ADS1115 ADC Analog To Digital Converter 16Bit I2C 4Channel Module
