64MP Autofocus Camera and Cable Extension Bundle Kit for Raspberry Pi

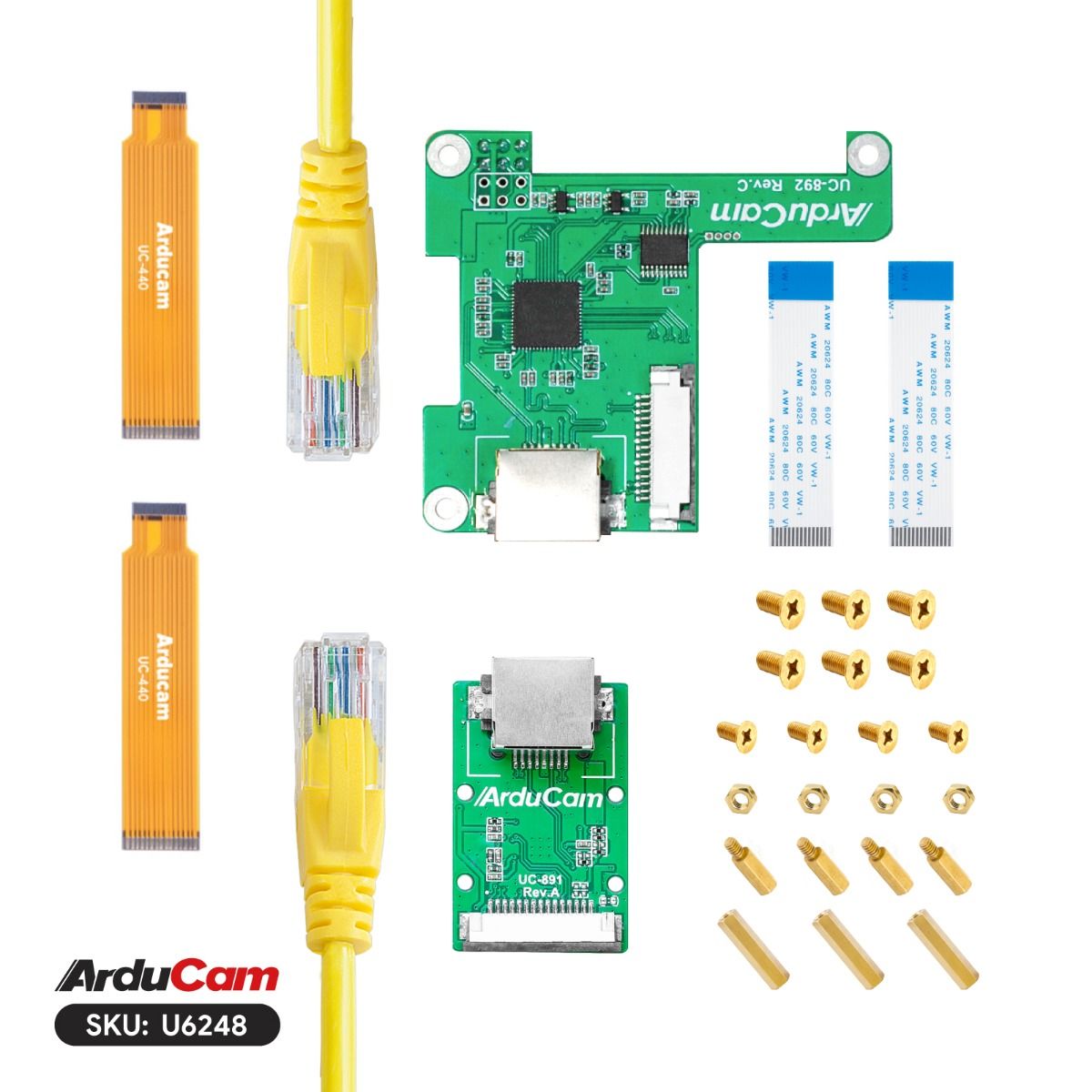

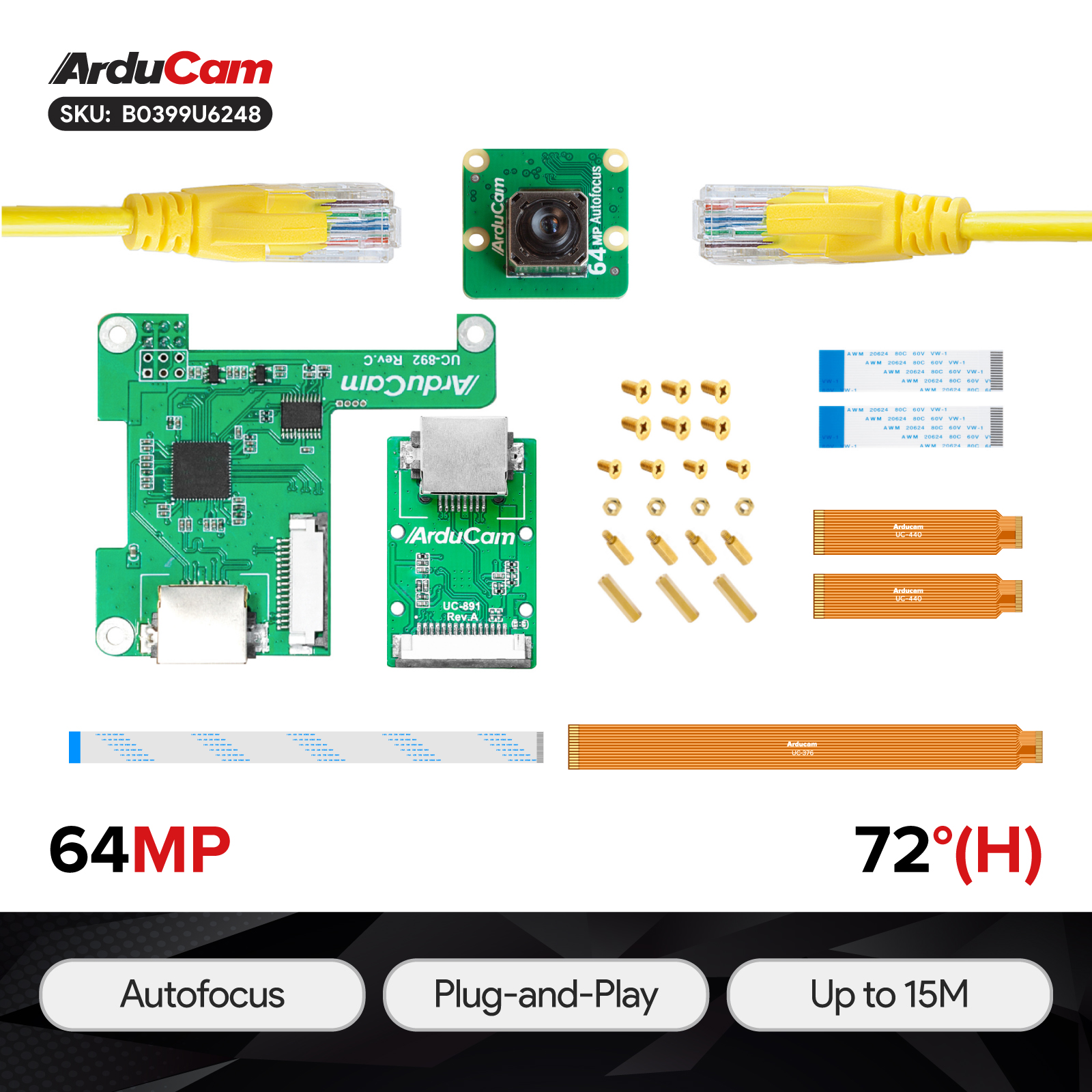

DescriptionOverviewA bundle kit with a 64MP autofocus camera module and a MIPI-CSI cable extension solution for you to put the camera far away from your Raspberry Pi.The 64MP-AF camera is compatible with most Raspberry Pi models, older ones like Pi 2 or Pi 0 may suffer from performance drops.The cable extension kit is also compatible with the official camera V1/V2/HQ and Arducam OV5647/IMX219/IMX477 series.SpecificationsOptical Size1/1.7" 9.25mm Diagonal(7.4×5.55mm)Focus TypeManual/AutoSensor Resolution9152×6944Color FilterQuad Bayer Coding(QBC)Focus8cm~INFFocal Length5.1mmView Angle84 Degrees (Diagonal)Dimensions25×24 mmShutter TypeRollingSensor Output FormatsRAW10Video Modes (Camera Module)*9152×[email protected], 8000×6000@3fps, 4624×3472@10fps, 3840×2160@20fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fpsPlatform Output FormatsJPEG/YUV/RGB/RAW10Video Modes (on Raspberry Pi)1080p30,720p60 and 640×480p60/90Supported PlatformsRaspberry Pi 5/4B/Pi 2/3/CM3/CM4/CM5/Zero W/Zero 2 WRaspberry Pi OSbookworm/bullseye(32-bit/64-bit) 01/28/22 or later releases Documentations64MP-AF Product Brief64MP-AF Camera Getting Started GuideCable Extension Kit ManualHow to Use Arducam 64MP Camera on Raspberry PiPacking List1 x 64MP-AF Camera1 x Cable Extension Kit2 x 73mm 15-22pin FPC Cable2 x 80mm 15-15pin FFC Cable1 x 150mm 15-22pin FPC Cable1 x 150mm 22-22pin FFC CableNote:**Make sure to use high-quality CAT5E, or higher standard cables.FAQSDoes the camera work with the 64MP quad-camera kit?Yes.Can I use LAN cables longer than 15 meters?We’ve tried it with longer cables (20 meters), but as far as stability is concerned, please keep it to no more than 15 meters.
