Arducam IMX477P V3Link FPD-Link SerDes Camera Kit for NVIDIA® Jetson Orin NX, Orin Nano

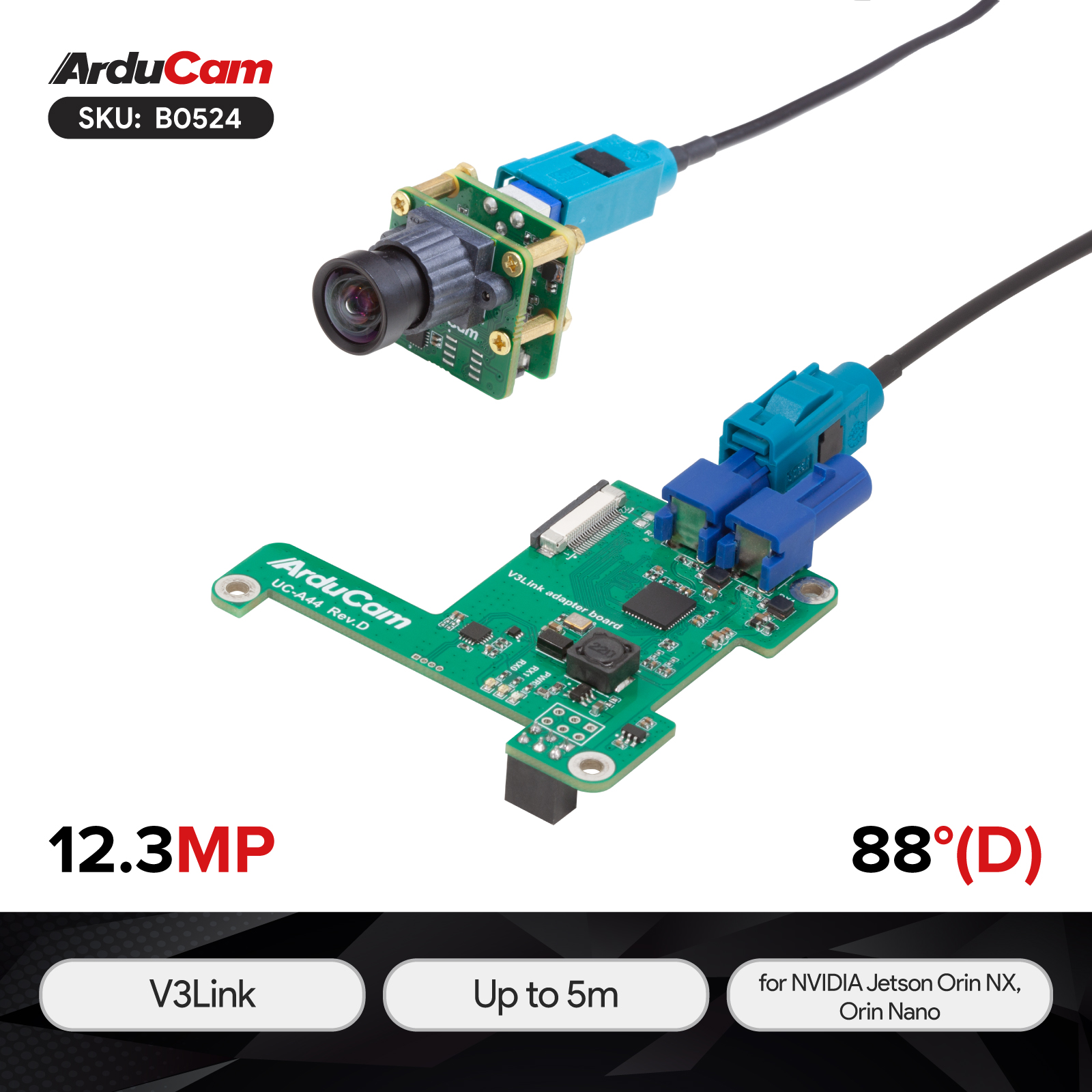

DescriptionOverviewArducam’s V3Link Camera Kit is built around a high-quality IMX477P sensor that adheres to the V3Link protocol, making it perfect for high-bandwidth, extended-range projects. The kit utilizes coaxial cables to ensure reliable power and data transmission up to 5 meters, providing low latency for optimal performance. With support for up to 2 IMX477P cameras and channel-switching capabilities, this kit is a versatile solution for various applications.Designed for the NVIDIA Jetson Orin Nano/NX, the kit includes an IMX477P camera module with a pre-installed Tx board, a Rx adapter board for connecting to the Jetson development board, and a 1-meter coaxial cable, enabling remote camera deployment with minimal configuration.V3Link, a cutting-edge technology developed by Texas Instruments, incorporates FPD-Link IP to integrate advanced driver assistance systems (ADAS), security cameras, industrial systems, and medical imaging into a single platform. Arducam’s V3Link Camera Kit leverages this technology to combine long-range data transfer with embedded vision, offering a compact and efficient solution for a variety of high-performance vision projects.ApplicationsADASAutomotiveSecurity CamerasIndustrial SystemsMedical ImagingFeaturesNVIDIA Jetson Orin Nano/NX Compatibility: Designed specifically for the Jetson Orin NX and Orin Nano, this V3LINK camera kit ensures high bandwidth and long-range transmission for optimal performance.High-performance IMX477P CMOS: Utilizes a 12.3-megapixel sensor for superior image quality with a 24*25mm camera board and M12 high-quality lens. The compact hardware supports Fakra Z Female to Female RF Coaxial Cable connections of up to 5 meters, enabling multi-camera access.Adaptive Channel Management: Up to two 477P cameras of the same model can be connected for independent camera switching. This feature is suitable for applications ranging from automotive to medical imaging.Cost-effective Dual-channel System: The dual-channel vision system reduces development costs thanks to its compact hardware architecture. It provides an efficient solution for integrating embedded cameras with V3LINK.Plug & Play: Hot-swappable support on the camera side (Tx board) simplifies integration and allows you to quickly deploy your V3LINK Extension camera project with a simple configuration.SpecificationsImage SensorSensorIMX477PStill Resolution12.3 MegapixelsColor Filter TypeColorShutter TypeRollingOptical Size1/2.3″Output FormatRAW10 (RG10)Pixel Size1.55 µm x 1.55 µmSensor Active Area4056(H) × 3040(V)Video Modesl4t36.x:4032×3040@21fps,3840×2160@30fps,1920×1080@60fpsLensFocus TypeManual FocusFOV88°(D)×75°(H)×60°(V)Lens MountM12 (S-mount)F.NOF2.8E.F.L3.9mmIR SensitivityIntegral IR-cut Filter, visible light onlyElectrical and MechanicalOperating Voltage3.3VOperating Temp.32°F-158°F (0°C to 70°C)Working Current Max: 300mACamera Board Size24 × 25 mmFunctionality and CompatibilitySupported PlatformNVIDIA Jetson Orin Nano/Orin NXSupported OSJetPack/L4T (JetPack 6.0/L4T 36.3.0) and abovePackage Including1 x Arducam V3Link Rx adapter board1 x Arducam V3Link camera Tx board1 x 1m Fakra Z Female to Female RF Coaxial Cable1 x Arducam IMX477P Camera Module1 x 40mm 22-22pin FFC Cable1 x 30cm 22-22pin FFC Cable1 x Screw PackNotesThis kit supports only the official NVIDIA Orin NX and Orin Nano development kits; third-party development boards are not supported.DocumentationQuick Start GuideV3Link Camera Solution
